Fabric properties
Blackout
Polyester Trevira CS, acrylic-coated
430 g/m²
0.45 mm
255 cm
8.9 cm, 12.7 cm, 260 cm
Features / Technical properties
5-6
Flame retardant
Digital printing
Oeko-Tex
Special colours from 500 m
Washing instructions
Optical and solar coefficients (± 5%, DIN EN 410)
| Colour |
|
|
|
|
|---|---|---|---|---|
| Colour 01 | Rs(%) 75.0 | As(%) 25.0 | Fc() 0.44 | gtot() 0.32 |
| Colour 04 | Rs(%) 67.0 | As(%) 33.0 | Fc() 0.49 | gtot() 0.35 |
| Colour 40 | Rs(%) 67.0 | As(%) 33.0 | Fc() 0.49 | gtot() 0.35 |
| Colour 48 | Rs(%) 72.0 | As(%) 28.0 | Fc() 0.46 | gtot() 0.33 |
| Colour 49 | Rs(%) 69.0 | As(%) 31.0 | Fc() 0.48 | gtot() 0.34 |
| Colour 50 | Rs(%) 69.0 | As(%) 31.0 | Fc() 0.48 | gtot() 0.34 |
| Colour 60 | Rs(%) 70.0 | As(%) 30.0 | Fc() 0.47 | gtot() 0.34 |
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Downloads
On request:
B-s2,d0 (EN 13501-1)
NFPA 701
B1 (DIN 4102-1)
IMO

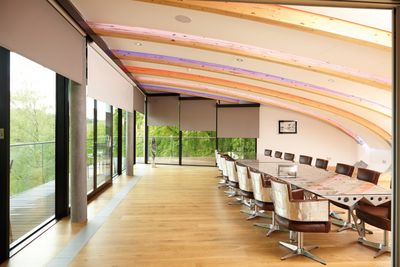

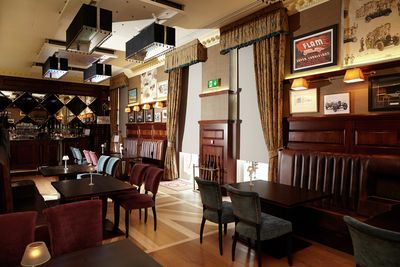

Inspiration
